By Apollo MFG


MSRP Price

Regular price $2,490.00
Regular price Sale price $2,490.00

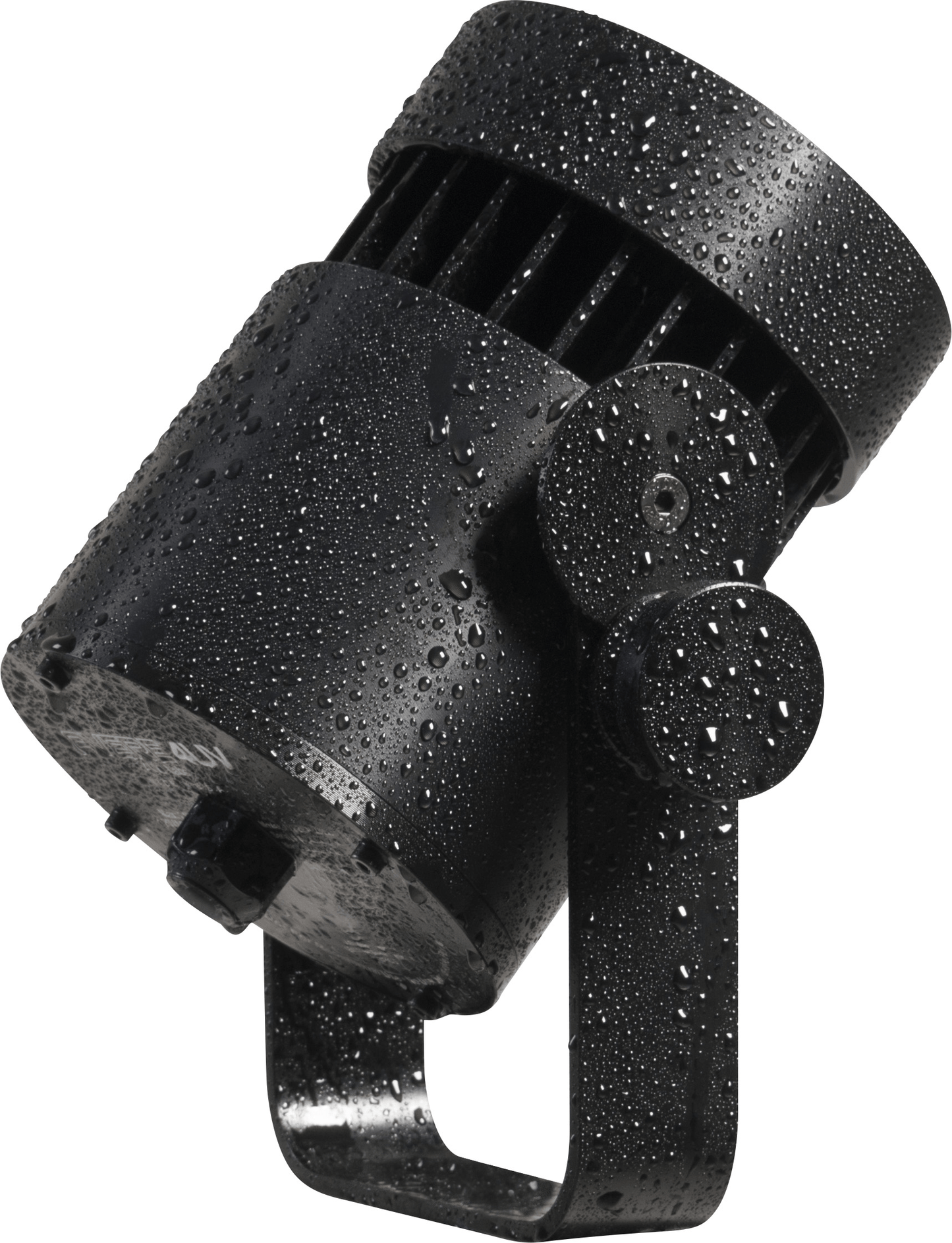

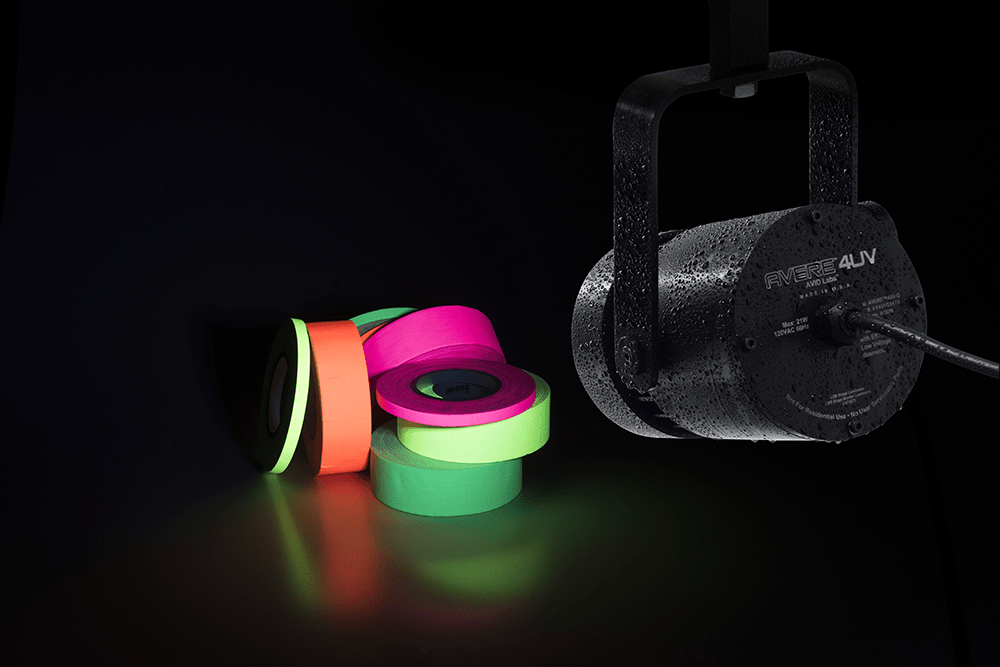

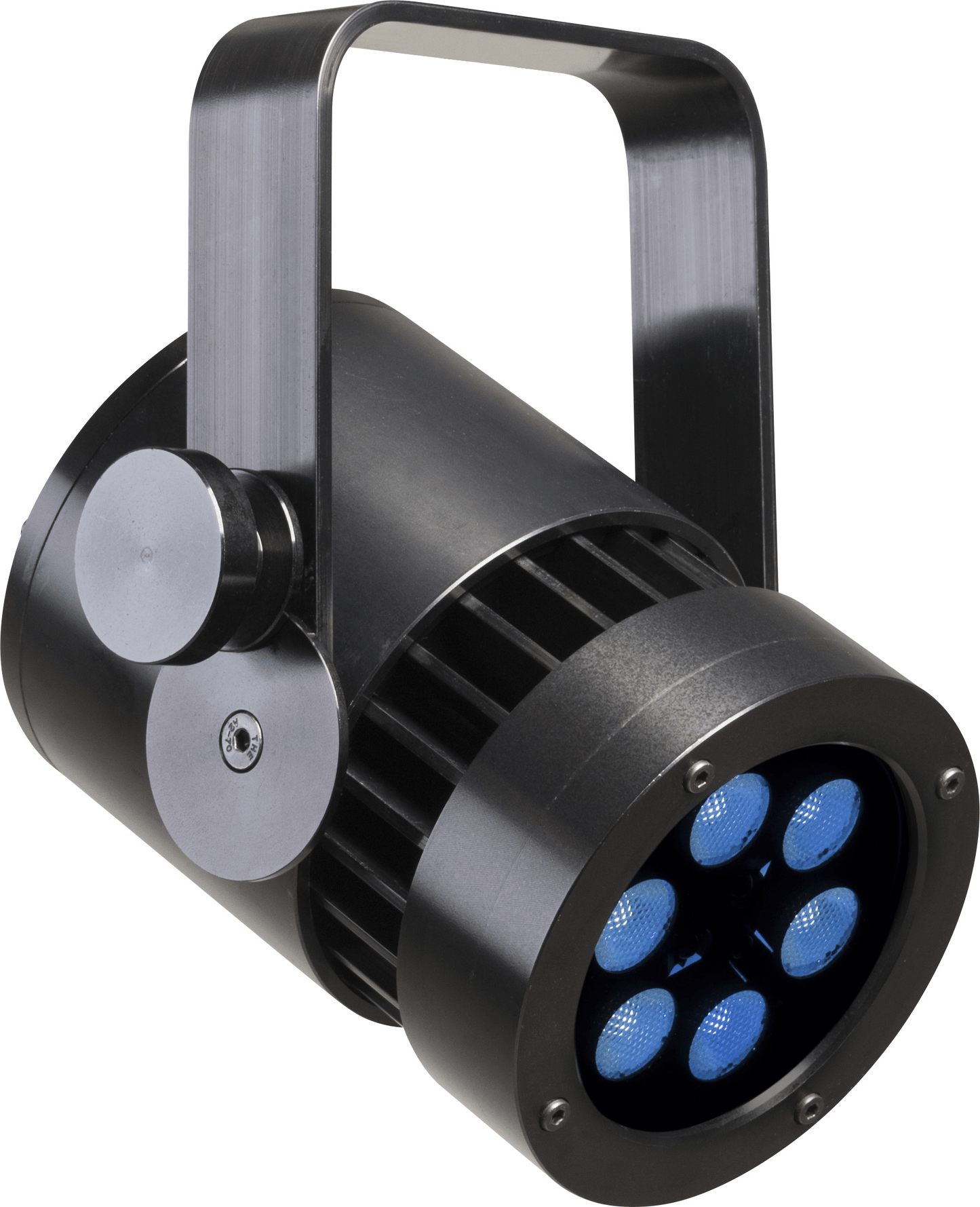

The newest revolution in compact UV LED fixtures. A weatherproof, fanless fixture that provides superior output of true 365nm radiated wavelength with 18.5 watts of power. The fixture is built in the U.S.A. from machined aircraft-grade aluminum that provides a low weight yet incredibly durable and aesthetically pleasing fixture.

Manual 7/23

Feature Sheet

Fixture Features:

•  LEDs: 6 High Efficacy UV Emitters

•  Beams: 14°, 25° or 40°

•  Radiated Wavelength: 365nm

•  Output: 6000mW

•  Dimmable to 0% with ELV Dimmers

•  Power Consumption: 21W

•  Fanless Cooling

•  IP65; UL Outdoor Rated for Wet Locations

•  Stainless Steel Hardware

•  Machined Aircraft-grade Aluminum Housing

Lens Degree: 14 Degree

Select patterns in our gobo catalog can be created for metal pattern usage as well as SuperResolution® glass or ColourScenic® patterns. This is dependent on the pattern's level of detail and gobo size needed.

Metal Gobos: Metal gobos require "bridging" which are very small lines that connect the internal structure of letters and designs. If bridging is not added, enclosed areas, such as the inside of the the letter 'O', would fall out.

SuperResolution® Gobos: A SuperResolution® gobo is a glass gobo that projects black & white or grayscale photographs or graphics with intricate detail. Donuts are recommended for use with SuperResolution® gobos. This creates a sharper image by blocking unwanted light.

2-Color Gobos: A 2-Color glass gobo is made from two color dichroic filters. It projects 2 colors with intricate detail. A reminder, a black filter is considered a color.

ColourScenic® Gobos: A ColourScenic® gobo is a glass gobo that projects full color, specific colors or gradients of color with intricate detail. In order to ensure the highest quality, some patterns cannot be produced in a particular size or substrate.

PrintScenic® Gobos: Many of our ColourScenic® glass designs are also available as a PrintScenic® gobo. Please check with your dealer for further details and availability.
