Apollo MFG

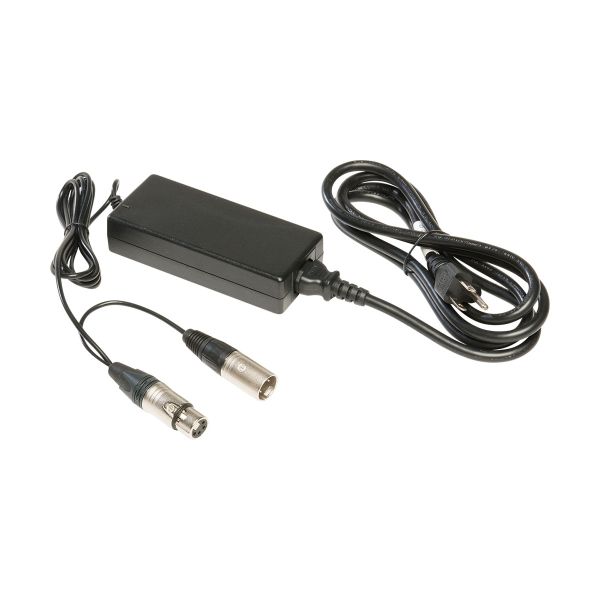

Smart Power 75W Power Supply
Smart Power 75W Power Supply
The power supplies are compatible with the majority of color scrollers, gobo rotators and other accessory devices. The SmartPower units are proudly built in the USA and tested against strict standards to ensure trouble-free installation and smooth operation.
The SmartPower portfolio offers affordable, versatile, dependable power to meet your needs.
Downloadable Documents
Features
- Auto sensing AC input voltage range, 100-240 volts, 50/60 Hz.
- Auto switching for international AC line voltages.
- User accessible fuse on back panel. Spare fuse included.
- Self-healing circuit protection.
- Output overload protection shuts individual circuit off if cable short or load fault occurs.
- Automatic output recovery when cable short or load fault is removed.
Specifications
| Voltage Input | 100-240 Volt AC Auto Switching |
| Hertz | 50-60Hz |
| External Fuse | No |
| Watts Per Circuit Output | 75 Watts |
| 5-Pin DMX Input | Yes |
| DMX Pass Through | No |
| Output Circuit at 24 VDC | 3.0 Amps |
| XLR 4-Pin Output | 1 |
| XLR 4-Pin Return with DMX Terminator | No |
| Cooler | Air |
| Device Loops | 0 |
| Rack Mount Kit | No |
| Dimensions | |
| Height | 7.25" (184.15mm) |
| Width | 2.25" (57.15mm) |
| Depth | 1.25" (31.75mm) |
| Weight | 1.4 lbs. (0.63kg) |
| Capacity | |
| Smart Color® Pro | 2 |
| MXR 2 | 1 |
| Smart Move® DMX | 4 |
| Smart Move® JR. DMX | 4 |
| EZ Iris | 4 |
| Certifications | |
| ETL or UL Listed | UL |
| Made in the USA | Yes |
