Apollo MFG

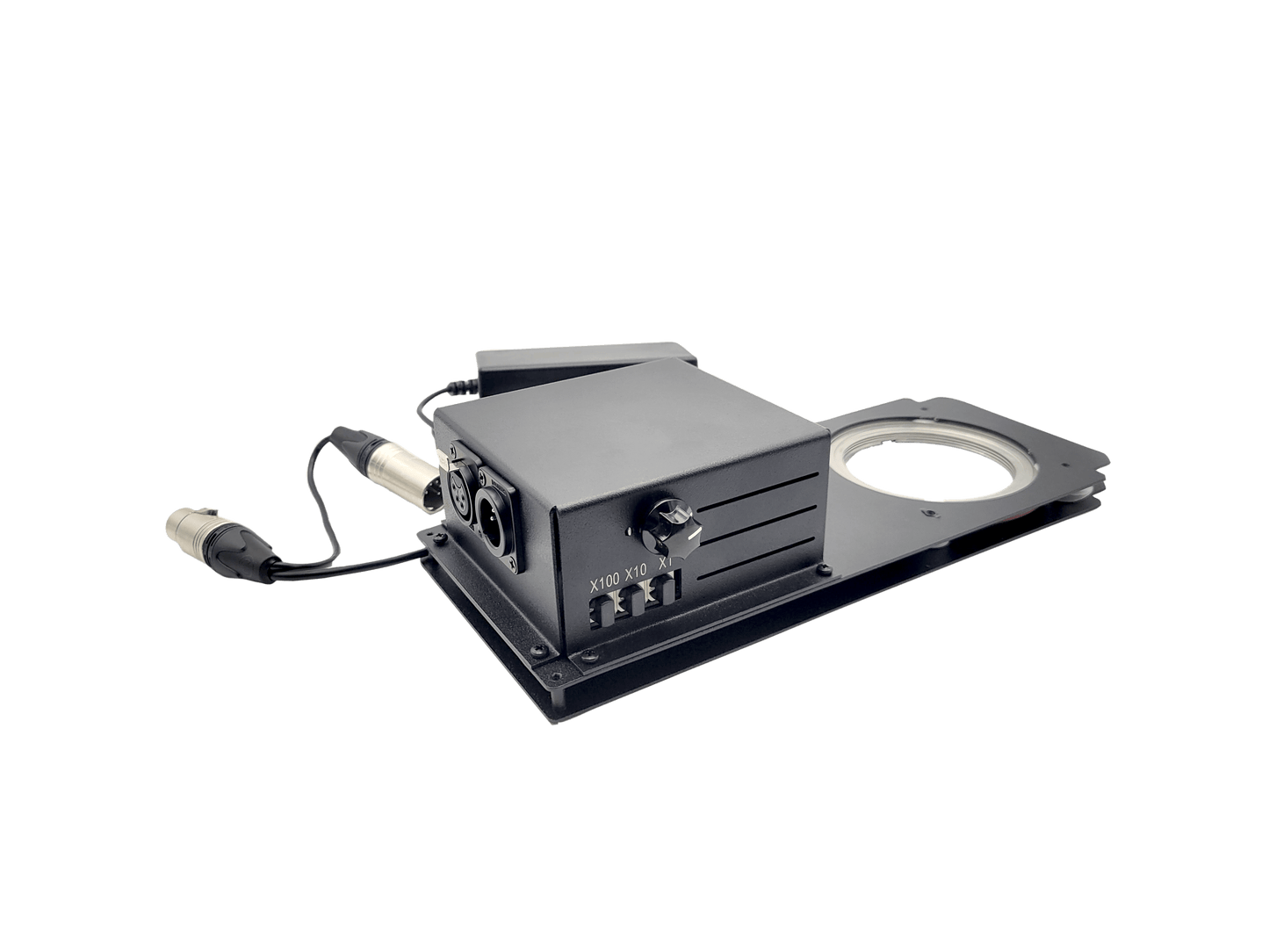

Smart Move DMX Rotator
Smart Move DMX Rotator
The Smart Move® DMX gobo rotator holds one or two "B" round gobos, secured by a heavy duty reversible retaining ring which is made of machined aluminum and is secured in place by two spring clips for easy adjustment and replacement. Belt driven for quiet operation, the rotator's black, powder-coat 18 gauge steel provides rigidity and durability. Infinitely variable speed range from 0 to 21 rpm plus rotary switches for easy setting to desired effect plus DMX control and indexing.
Made in the USA.
Downloadable Documents
Features
- 19 Pre-programmed Effects or Design-Your-Own
- Smooth Quiet Operation
- Simple Controls
- Infinitely Variable Speeds from 0-21rpm
- Versatile - Almost Any Gobo Type
- DMX Control and Indexing
- CE and FCC Compliant
- Made in the USA
Specifications
| Compatible Fixtures |
|
| Dimensions (LxWxD) | 11.30" x 4.70" x 2.62" (287.02mm x 119.38mm x 66.54mm) |
| Weight | 2.8 lbs. (1.27kg) |
| Gobo Sizes | 1 or 2 B Round Metal and/or Glass |
| Drive System | Silent Drive Belt |
| Rotation Speeds | Infinitely Variable CW/CCW, 0-21 rpm |
| Power Requirement | 24VDC + DMX 512, (1990) (sold separately) |
| Power Consumption | 14.5 watts |
| DMX Channels | 3 |
| Data / Power Transmission | XLR 4-Pin Cable |
| Power Cord Length | N/A |
| Safety Cable | Sold Separately |
| Retaining Ring | Reversible for Metal or Glass Gobos (2) |
| Effect Options | 19 (See Manual) |
| Effect Settings | 3 Rotary Switches |
| Certifications | CE and FCC Compliant, Made in USA |
