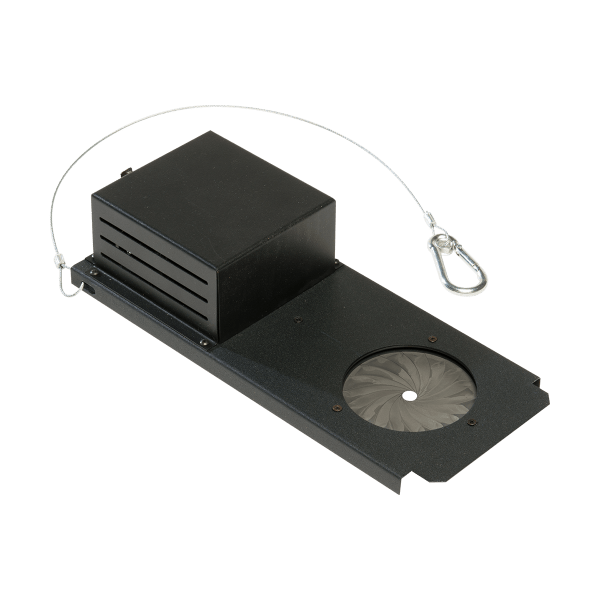

EZ Iris DMX

The EZ Iris gives complete control over the beam spread of many Ellipsoidal fixtures. It provides smooth, quiet, dependable operation at an affordable price.

Downloadable Documents

• Feature Sheet (PDF)
• Manual (PDF)

Features

• Round, Even-edged Apertures
• Seamless Aperture Changes
• Smooth Quiet Gear-driven Operation
• DMX Control and Indexing
• CE and FCC Compliant
• Made in the USA
• External Power Supply required (sold separately)

Specifications

• Fixture Compatibility: ETC Source Four, Strand SL, Altman Shakespeare
• Power Supply : Apollo Smart Power® 75W, 200W and 400W or other compatible unit.
• Dimensions (HxWxD): 11.3" x 4.7" x 2.75Ø (287.02mm x 119.38mm x 69.85mm)
• Weight: 2.8 lbs. (1.27kg)
• Material / Color: Steel, black or white textured matte powder coat. Custom colors available.
• Fixture Max Watt: For use in fixture up to 750 watts
• Ports: 4-pin XLR
• Safety Cable: Yes

Operational

• Drive System: Gear driven by stepper motor
• Aperture: 0.625" (15.88mm) minimum to 2.9" (73.66mm) maximum diameter
• Iris Speed: Varies
• Power Requirement: 24VDC + DMX512 (1990) (sold separately)
• Power Consumption: 14.5 Watt
• DMX Channels Required: One
• Protocol Requirements: DMX 512 (1990)
• Input Connector: XLR 4-pin male (power and control protocol)
• Output Connector: XLR 4-pin female (power and control protocol)
• Certifications: CE and FCC Compliant, Made in the USA
