CLP1

A cutting-edge light fixture that redefines the game with a revolutionary technology that emits perfectly collimated light without the traditional lensing. Say goodbye to focusing—our fixture is designed to produce crisp, clear light right where you want it. Unleash your creativity with the freedom to use a variety of GOBOs (even off-axis and curved) without additional adjustments. By removing the complications of lensing, our projector offers a compact footprint alongside a streamlined solution. Experience the next generation of lighting technology—where precision meets simplicity!

Features

• FocusFree™ collimated light design
• Expansive customizations opportunities
• Ultimate GOBO shape, size, and positioning flexibility
• Simple, compact fixture, 1.81 kilo(4lbs) including standard straight head and cord
• DMX- Daisy-chainable available
• Photometrics: 3ft (0.914m) - 44" (1.11m) W x 25" (0.635m) H 6ft (1.828m) - 88" (2.22m) W x 50" (1.27m) H
12ft (3.658m) - 176" (4.44m) W x 100 (2.54m) H

Example Demonstration Attachments

Specifications

• 6000 Kelvin, collimated light source
• 70+ CRI
• 1000+ lumens
• 120° beam angle
• 4-pin XLR connector for power and optional data

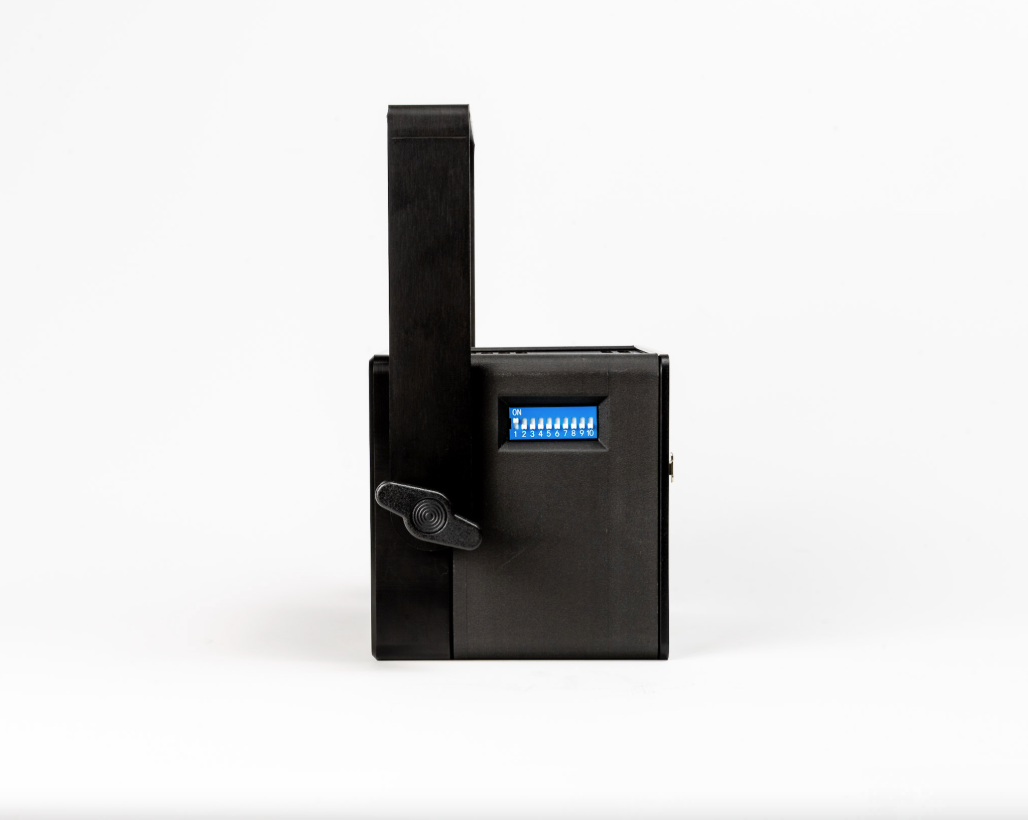

• DMX On/Off and Dimming, addressable via dip switch
• Daisy-chainable
• Status LEDs
• Quiet fan, can be disabled via DMX

Power

• Input: 100-240V, 50-60Hz
• Output: DC 8.2V, 2.5A (20.5W)

Design

• Machined aluminum and 3D printed components
• Patent pending design
• Designed & built in the U.S.A.

Dimensions
